A side on view of the tangent cutter. Easy to make up yourself from a boring bar.
24 July 2016
·
8 years ago
From album Workshop equipment

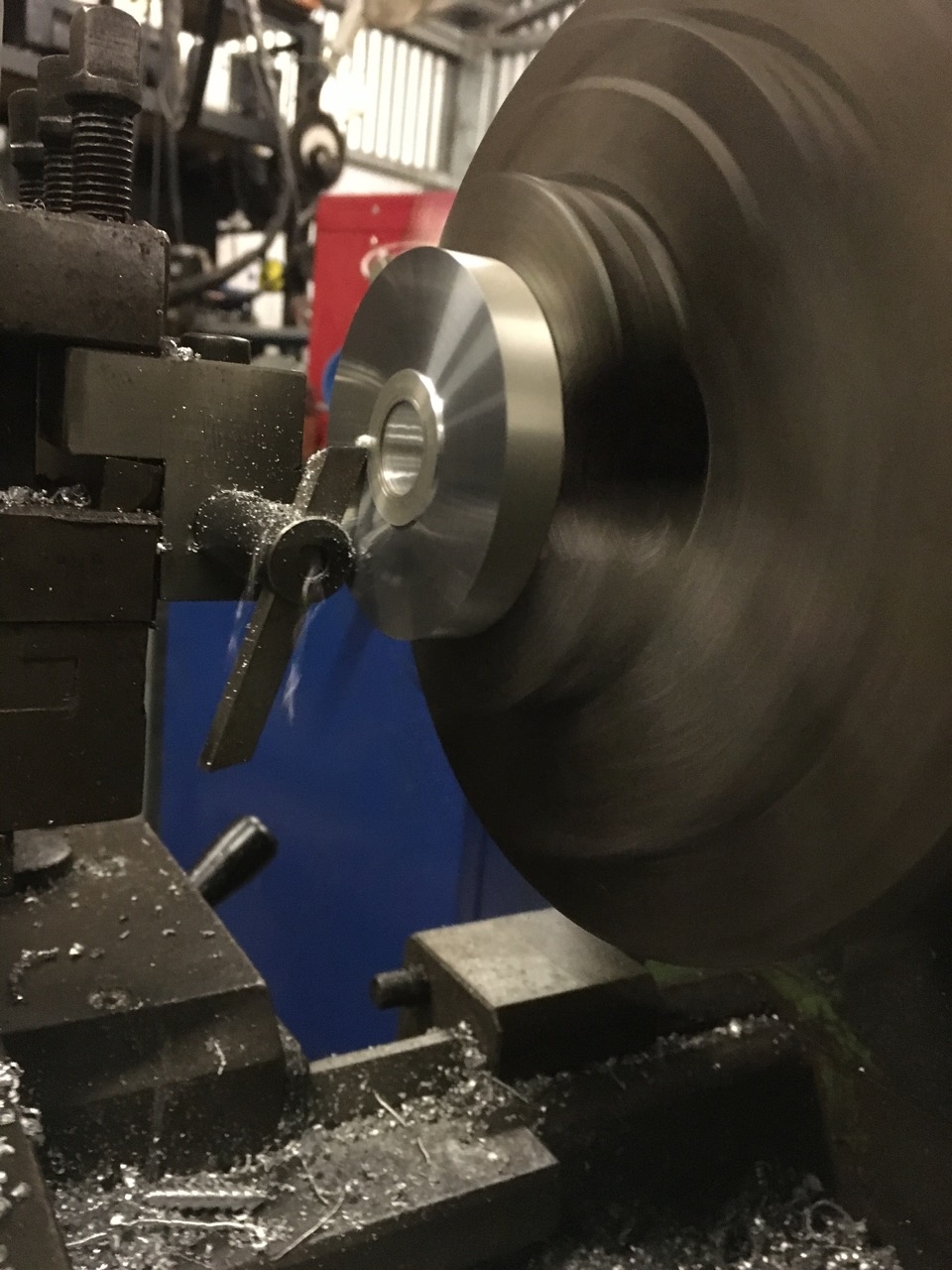

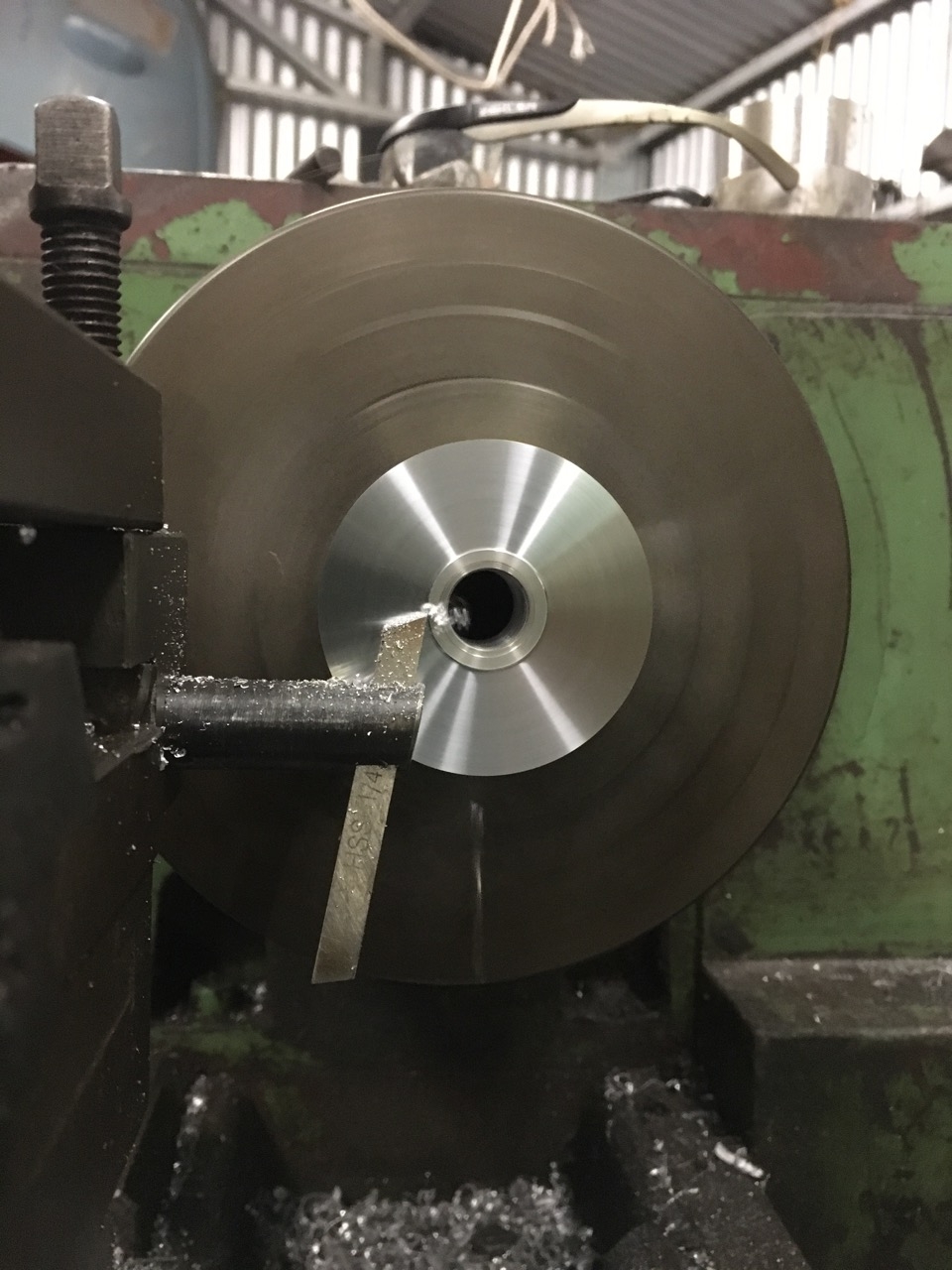

This is a great lathe tool that can be used to both face and turn without having to reset the tool. It only requires one 30 deg relief angle to be cut.The tool is presented to the workpiece at 15 degrees in x and y, the 30 degree angle provides...
This is a great lathe tool that can be used to both face and turn without having to reset the tool. It only requires one 30 deg relief angle to be cut.The tool is presented to the workpiece at 15 degrees in x and y, the 30 degree angle provides the clearance relief from the workpiece.
More
From album Workshop equipment

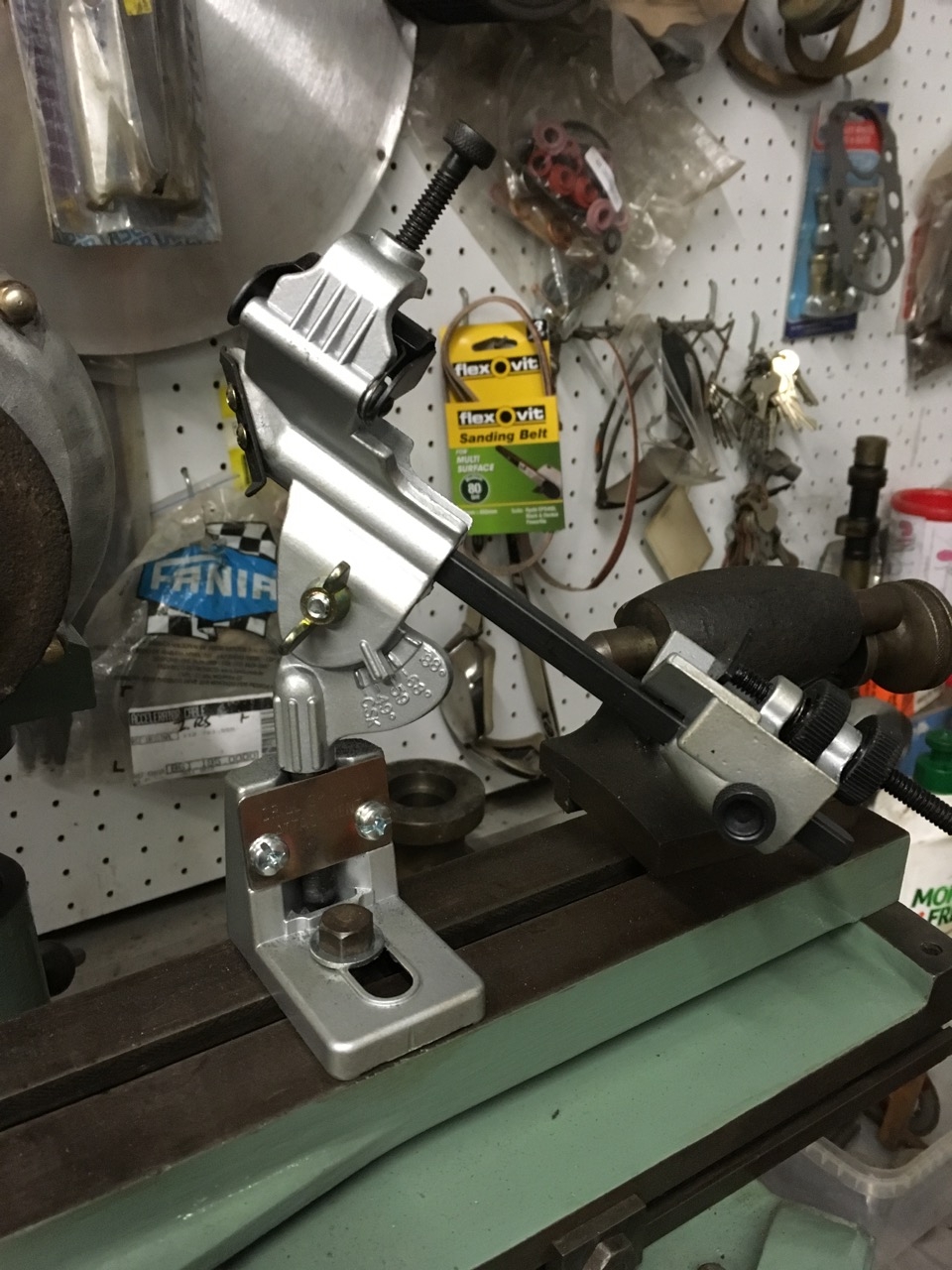

These jigs are great and only cost a few dollars. They can be used on a regular grinder and give very consistent results.
